Silicone Rubber Electric Cable

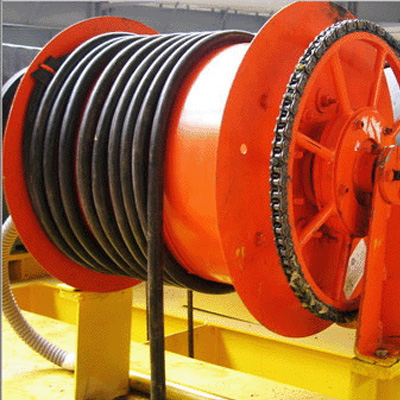

Steel wire tensile silicone rubber reel cable

Steel wire tensile silicone rubber reel cable
Product description: Steel wire tensile silicone rubber reel cable for control and power supply, where high mechanical stress and torsional stress are applied in a high temperature environment of 180 ° C, the short-time o
INQUIRY

Steel wire tensile silicone rubber reel cable for control and power supply, where high mechanical stress and torsional stress are applied in a high temperature environment of 180 ° C, the short-time operating temperature can reach 220 ° C, and the low temperature can reach -60 ° C. Suitable for motor driven reels, spring controlled reels and hoist systems. Widely used in steel, aviation industry, shipbuilding, ceramics, glass, cement plants, metallurgy, lifting and other industries.
Steel wire tensile silicone rubber reel cable structure:
1. Conductor: tinned copper wire
2. Insulation: Silicone rubber
3. Inner sheath: with twisted braided silicone rubber
4. Outer Sheath: High Strength Silicone Color: Red,Black
Content: The J-type cable is reinforced with steel wire and has certain tensile and dragging effects. It is suitable for heavy machinery and mobile equipment.
The P-type cable is shielded. The tinned copper wire and the colored nylon composite shield reduce the interference of external electromagnetic waves on the current in the cable, and reduce the influence of the electromagnetic field generated in the cable on the outside. It is suitable for occasions with signal interference.

Steel wire tensile silicone rubber reel cable Application:

For multi-core reel cable, when the combined reel cable is wound on the reel, the current carrying capacity of the cable should be determined according to the length of the cable and the thickness of the cable superimposed. Flat reel cable for power and data transmission, especially for low volume reels and extreme mechanical stress high speed winding. Mainly used in: shore container crane (STS), rail container gantry lifting (RMG), ship unloader, stacker and reclaimer and open pit mine, underground mine.
