Silicone rubber insulated and sheathed thin steel wire armored high temperature control cable KGG32
Silicone rubber insulated and sheathed cable
Product description: Silicone rubber insulated and sheathed thin steel wire armored high temperature control cable KGG32 not only has the high temperature resistance of the silicone rubber cable, but also the galvanized f

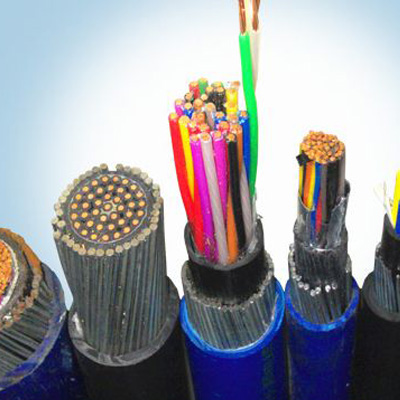

Silicone rubber insulated and sheathed thin steel wire armored high temperature control cable KGG32 not only has the high temperature resistance of the silicone rubber cable, but also the galvanized fine steel wire armor, which greatly improves the tensile performance of the cable. Silicone rubber insulated and sheathed thin steel wire armored high temperature control cable KGG32 structure: Conductor: single or multiple strands of tinned copper wire stranded Insulation: silicone rubber / high tear resistant silicone rubber (optional for flame retardant insulation) Core wire: core wire twisted composite cable, the color of the core wire meets the priority chromatogram selection in GB/T 5023.1 and JB/T 8734.1 Color or coded core wire, 3 or more cores with yellow and green double color lines (optional) Lining: extrusion or wrapping non-hygroscopic material; the inner liner of the extrusion should not adhere to the insulated core, and the inner liner of the package can be double or multi-layered. Armored: galvanized steel wire armor, in line with GB/T 2952.1-1989 requirements Sheath: silicone rubber / high tear resistant silicone rubber (optional flame retardant jacket) Sheath color: black or red, can be customized according to customer needs Silicone rubber insulated and sheathed thin steel wire armored high temperature control cable KGG32 characteristics: The long-term working temperature of the cable should not exceed 180 °C High temperature resistance, low temperature resistance, acid and alkali resistance, aging resistance, moisture resistance Flame retardant: passed GB/T 18380-2008 non-flame retarding test Silicone rubber insulated and sheathed thin steel wire armored high temperature control cable KGG32 is suitable for power transmission lines with fixed voltage of 0.6/1KV and below or connecting cables for mobile electrical appliances. The products have the characteristics of heat radiation, cold resistance, acid and alkali resistance, corrosive gas and waterproof.
