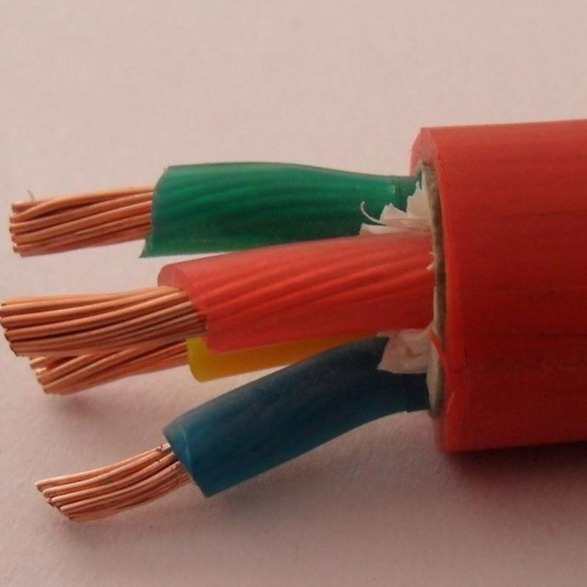

0.6/1kV heat-resistant silicone rubber insulation and sheath moving power cable YGCR
silicone rubber insulation and sheath moving power cable
silicone rubber cable
Product description: 0.6/1kV heat-resistant silicone rubber insulation and sheath moving power cable YGCR has the characteristics of heat radiation, cold resistance, acid and alkali resistance, corrosive gas, waterproof,
0.6/1kV heat-resistant silicone rubber insulation and sheath moving power cable YGCR has the characteristics of heat radiation, cold resistance, acid and alkali resistance, corrosive gas, waterproof, etc. The silicone rubber cable structure is soft, the electrical performance is stable under high temperature (cold) environment, the anti-aging performance is outstanding, and the service life is long. Silicone rubber power cable use characteristics 1. AC rated voltage: U0/U 0.6/1KV Maximum operating temperature: 180 ° C Minimum ambient temperature: fixed laying -60 ° C 2. The cable installation temperature should not be lower than -25 °C. 3. Cable allows bending radius: cable is at least 10 times the outer diameter of the cable Silicone rubber power cable basic model and name: Table 1 model 0.6/1kV heat-resistant silicone rubber insulation and sheath moving power cable name YGC Silicone rubber insulated silicon rubber sheathed power cable YGCR Silicone rubber insulated silicon rubber sheathed mobile power flexible cable YGCP Silicone rubber insulated silicon rubber sheathed copper braided shielded power cable YGC22 Silicone rubber insulated silicon rubber sheathed steel tape armored power cable JGG Silicone rubber insulated silicone rubber sheathing installation line JGGR Silicone rubber insulated silicone rubber sheath mobile mounting cable JGGP Silicone rubber insulated silicon rubber sheathed copper braided shield mounting wire JHXG Silicone rubber insulated motor lead wire Remark: ZR is added to the flame retardant silicone rubber cable model, and the copper wire in the conductor core can be tinned. silicone rubber insulation and sheath moving power cable Code meaning Y-series coded mobile flexible cable G-silicone rubber C-heavy 22-steel belt armor P-copper braided shield R-multiple stranded conductor
0.6/1kV heat-resistant silicone rubber insulation and sheath moving power cable YGCR is suitable for power transmission lines with fixed voltages of 0.6/1KV and below, or connecting cables for mobile electrical appliances. It is widely used in metallurgy, electric power, petrochemical, electronics, automobile manufacturing and other industries.
