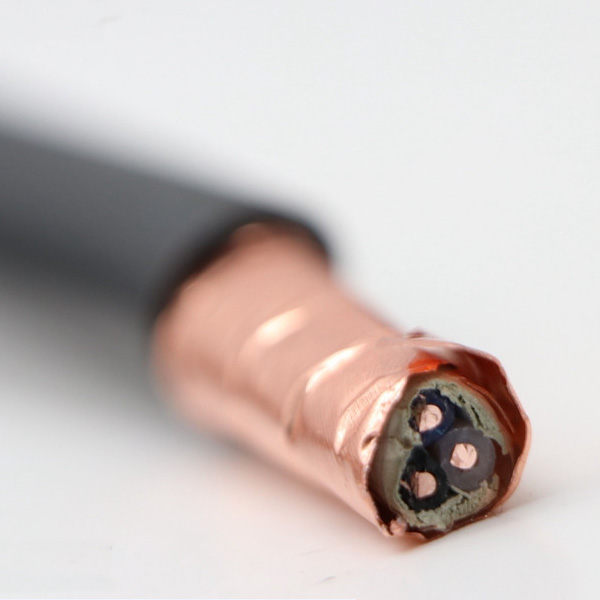

Silicone rubber insulated PVC sheathed copper tape shielded control flexible cable KGVRP2 has good acid, alkali and antifungal properties, can withstand damp heat and resistance to various greases, and has good cable softness and waterproofness. Advantages such as pressure resistance.
Silicone rubber insulated PVC sheathed copper tape shielded control flexible cable KGVRP2 material:
Item
Code
Description
Flame retardant properties
ZR
Flame retardant silicone rubber sheathing material
Serial code
K
Control Cable
Insulation Materials
G
Silicone Rubber
Jacket material
V
PVC
Shielding material
P2
Copper tape shielding
Conductor structure
R
Stranded conductor
Related silicone rubber control cable model, name and scope of use
|
Type |
Name |
Main use range |
|
KGG |
Silicone rubber insulated sheathed control cable |
High temperature resistance, fixed laying |
|
KGGR |
Silicone rubber insulation sheath control flexible cable |
Can be used as a mobile place |
|
KGGP |
Silicone rubber insulated sheathed copper wire braided shielded control cable |
Required shielding place
|
|
KGGRP |
Silicone rubber insulated sheathed copper wire braided shielded control flexible cable |
|
|
KGGP2 |
Silicone rubber insulated sheathed copper tape shielded control cable |
|
|
KGV |
Silicone rubber insulated PVC sheathed sheathed control cable |
Low ambient temperature
|
|
KGVR |
Silicone rubber insulated PVC sheathed sheathed control flexible cable |
|
|
KGVP |
Silicone rubber insulated PVC sheathed copper wire braided shielded control cable |
Required shielding place
|
|
KGVRP |
Silicone rubber insulated PVC sheathed copper wire braided shield control flexible cable |
|
|
KGVP2 |
Silicone rubber insulated PVC sheathed copper tape shielded control cable |
|
|
KGVRP2 |
Silicone rubber insulated PVC sheathed sheathed copper tape shielded control flexible cable |
|
|
KGV22 |
Silicone rubber insulated PVC sheathed sheathed steel tape armored control cable |
Mechanical protection
|
|
KGVP2-22 |
Silicone rubber insulated PVC sheathed copper tape shielded steel tape armored control cable |
|
|
KGV32 |
Silicone rubber insulated PVC sheathed sheathed steel wire armored control cable |
Long vertical laying place |
|
ZR-KGG |
Silicone rubber insulated sheathed flame-retardant control cable |
Laying in a place requiring flame retardancy and fire resistance |
|
NH-KGVP2 |
Silicone rubber insulated PVC sheathed copper tape shielded fireproof control cable |
|
|
Note: The above cables can be produced into flame retardant or fire resistant cables. |
||
Basic silicone rubber cable specifications and structural parameters
Basic cable specifications and structural parameters
Core * nominal cross section
(mm2)
Conductor structure
(number of roots * diameter)
mm
Maximum outer diameter of the cable
(mm)
reference weight(kg/km)
KGGR
KGGRP
KGGR
KGGRP
2*0.75
24*0.20
9.2
10.0
78
118
2*1.0
32*0.20
9.5
10.6
87
127
2*1.5
48*0.20
10.2
11.5
114
164
2*2.5
51*0.25
10.5
12.5
156
210
3*0.75
24*0.20
10.5
11.5
93
133
3*1.0
32*0.20
11.5
12.9
100
152
3*1.5
48*0.20
12.0
13.8
126
177
3*2.5
51*0.25
12.5
14.8
180
243
4*0.75
24*0.20
11.0
12.5
110
160
4*1.0
32*0.20
11.5
13.0
120
173
4*1.5
48*0.20
12.0
13.5
151
205
4*2.5
51*0.25
14.5
15.5
220
270
The above models are just some examples. If you need custom silicone rubber control cable, please contact us.
Contact: Mr Li
Phone: +86-18226665885
Tel: +86-0550-7788337
Email: sales@tksiliconerubbercable.com
Add: No.20# RenHe South Road,TianChang,AnHui Province,China
