Silicone rubber control cable

Silicone rubber insulated silicone rubber sheathed copper tape shielded control flexible cable KGGRP2

Silicone rubber insulated silicone rubber sheathed copper tape shielded control flexible cable KGGRP2
Product description: Silicone rubber insulated silicone rubber sheathed copper tape shielded control flexible cable KGGRP2 uses oxygen-free copper or tinned copper conductor, silicone rubber insulation, silicone rubber, c
INQUIRY

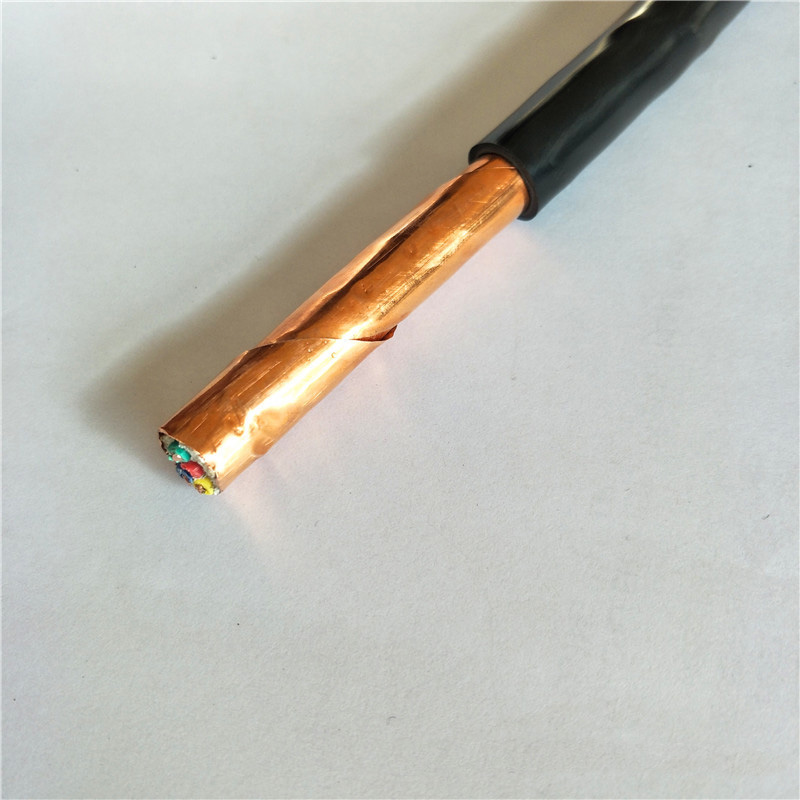

Silicone rubber insulated silicone rubber sheathed copper tape shielded control flexible cable KGGRP2 uses oxygen-free copper or tinned copper conductor, silicone rubber insulation, silicone rubber, copper tape shielding, with high temperature resistance, signal interference, corrosion resistance, oil resistance, radiation resistance, ozone resistance, aging resistance, high flame retardant, insulation Excellent performance and other characteristics.
Silicone rubber insulated silicone rubber sheathed copper tape shielded control flexible cable KGGRP2 material:

Item	Code	Description
Flame retardant properties	ZR	Flame retardant silicone rubber sheathing material
Serial code	K	Control Cable
Insulation Materials	G	Silicone Rubber
Jacket material	G	Silicone Rubber
Shielding material	P2	Copper tape shielding
Conductor structure	R	Stranded conductor

Silicone rubber insulated silicone rubber sheathed copper tape shielded control flexible cable KGGRP2 Use characteristics:
1. AC rated voltage: (U0/U) 450/750V
2, cable conductor long-term working temperature:
Silicone rubber insulation and sheath: -60 ° C ~ 180 ° C
3, cable laying and its ambient temperature: silicone rubber insulation and sheath is not lower than -60 ° C.
4, fire resistance characteristics: in accordance with IEC331; flame temperature 750 ° C; burning time 3h, cooling time 12h; additional voltage: 500V, additional current 3A, no short circuit. Meet the requirements of GB12666.6-90: flame temperature 950 ° C ~ 1000 ° C; burning time 1.5h; additional voltage: 500V, additional current 3A, no short circuit.
5, the cable allows bending radius: soft silicone rubber cable is not less than 8 times the outer diameter of the cable finished product.

Related silicone rubber control cable model, name and scope of use

Type	Name	Main use range
KGG	Silicone rubber insulated sheathed control cable	High temperature resistance, fixed laying
KGGR	Silicone rubber insulation sheath control flexible cable	Can be used as a mobile place
KGGP	Silicone rubber insulated sheathed copper wire braided shielded control cable	Required shielding place
KGGRP	Silicone rubber insulated sheathed copper wire braided shielded control flexible cable
KGGP2	Silicone rubber insulated sheathed copper tape shielded control cable
KGV	Silicone rubber insulated PVC sheathed sheathed control cable	Low ambient temperature
KGVR	Silicone rubber insulated PVC sheathed sheathed control flexible cable	Low ambient temperature
KGVP	Silicone rubber insulated PVC sheathed copper wire braided shielded control cable	Required shielding place
KGVRP	Silicone rubber insulated PVC sheathed copper wire braided shield control flexible cable
KGVP2	Silicone rubber insulated PVC sheathed copper tape shielded control cable
KGVRP2	Silicone rubber insulated PVC sheathed sheathed copper tape shielded control flexible cable
KGV22	Silicone rubber insulated PVC sheathed sheathed steel tape armored control cable	Mechanical protection
KGVP2-22	Silicone rubber insulated PVC sheathed copper tape shielded steel tape armored control cable	Mechanical protection
KGV32	Silicone rubber insulated PVC sheathed sheathed steel wire armored control cable	Long vertical laying place
ZR-KGG	Silicone rubber insulated sheathed flame-retardant control cable	Laying in a place requiring flame retardancy and fire resistance
NH-KGVP2	Silicone rubber insulated PVC sheathed copper tape shielded fireproof control cable
Note: The above cables can be produced into flame retardant or fire resistant cables.
